ACME Registration Authority for Google Certificate Authority Service

A Registration Authority sits in front of a Certificate Authority (CA) and provides an authentication and authorization layer. This guide will show you how to set up an ACME Registration Authority (RA) backed by a Google Cloud Certificate Authority Service (CAS) instance. We will deploy the RA as a VM instance that issues X.509 Certificates for internal services, using the ACME protocol.

Requirements

Configuration Guide

1. Create or select an existing GCP project and enable CAS APIs.

For the purposes of this example, lets use the project ID smallstep-cas-test.

In a console, run:

$ export PROJECT_ID=smallstep-cas-test $ gcloud config set project $PROJECT_ID # Enable CAS $ gcloud services enable privateca.googleapis.com
2. Create a CA Pool

Run:

gcloud privateca pools create example-ca-pool --location us-west1
3. Create and Enable a Root CA

To create, run:

gcloud privateca roots create example-root-ca \ --pool example-ca-pool \ --location us-west1 \ --subject "CN=Example Root CA, O=Example LLC" \ --key-algorithm ec-p256-sha256 \ --max-chain-length 1

Be sure to change the Common Name and Organization to your liking.

To enable CA, run:

  gcloud privateca roots enable example-root-ca \
    --pool example-ca-pool \
    --location us-west1
4. Create and Enable an Intermediate CA.

To create, run:

gcloud privateca subordinates create example-intermediate-ca \ --pool example-ca-pool \ --location us-west1 \ --issuer-ca example-root-ca \ --issuer-pool example-ca-pool \ --issuer-location us-west1 \ --subject "CN=Example Intermediate CA, O=Example LLC" \ --key-algorithm ec-p256-sha256 \ --max-chain-length 1

To enable, run:

gcloud privateca subordinates enable example-intermediate-ca \ --pool example-ca-pool \ --location us-west1
5. (Optional) Test Root and Intermediate CA

To inspect the root and intermediate CA, you need to have the following dependencies installed:

Run:

gcloud privateca roots describe example-root-ca \ --project smallstep-cas-test --location us-west1 \ --pool example-ca-pool --format json | jq -r '.pemCaCertificates[0]' | step certificate inspect

Run:

gcloud privateca subordinates describe example-intermediate-ca \ --project smallstep-cas-test --location us-west1 \ --pool example-ca-pool --format json | jq -r '.pemCaCertificates[0]' | step certificate inspect
6. Configure a service account with necessary role bindings to request and manage X.509 Certificates using CAS.

Run:

# Create service account gcloud iam service-accounts create step-cas-sa \ --description "Step-CA Service Account" \ --display-name "Step-CA Service Account" # Add permissions to use the privateca API gcloud projects add-iam-policy-binding $PROJECT_ID \ --member=serviceAccount:step-cas-sa@$PROJECT_ID.iam.gserviceaccount.com \ --role=roles/privateca.certificateManager gcloud projects add-iam-policy-binding $PROJECT_ID \ --member=serviceAccount:step-cas-sa@$PROJECT_ID.iam.gserviceaccount.com \ --role=roles/privateca.certificateRequester
7. Launch a "Smallstep ACME Registration Authority for CAS" deployment

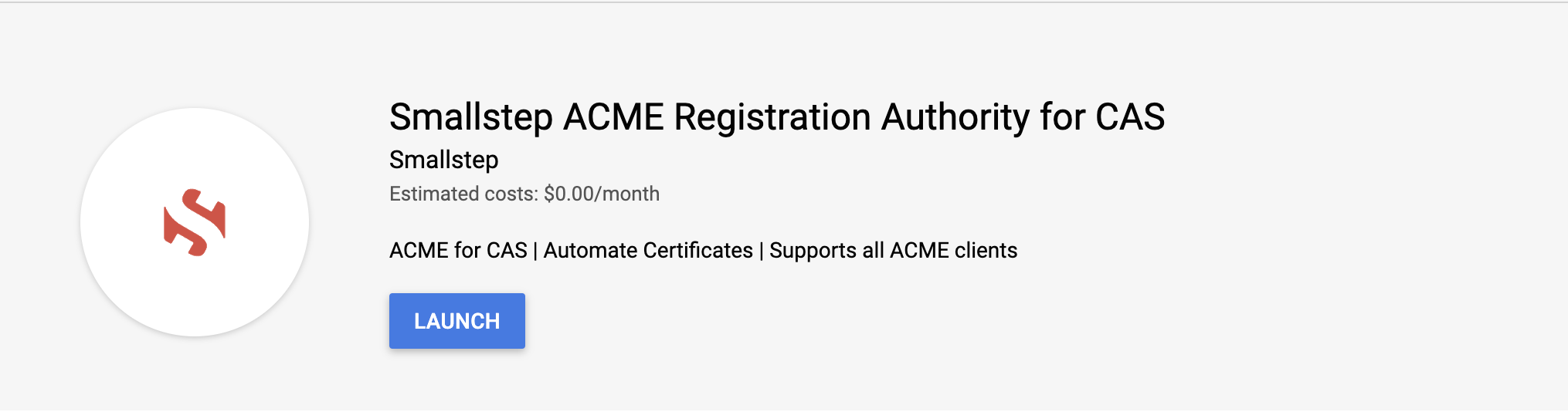

  1. Select "Smallstep ACME Registration Authority for CAS" from GCP marketplace and hit the Launch button.

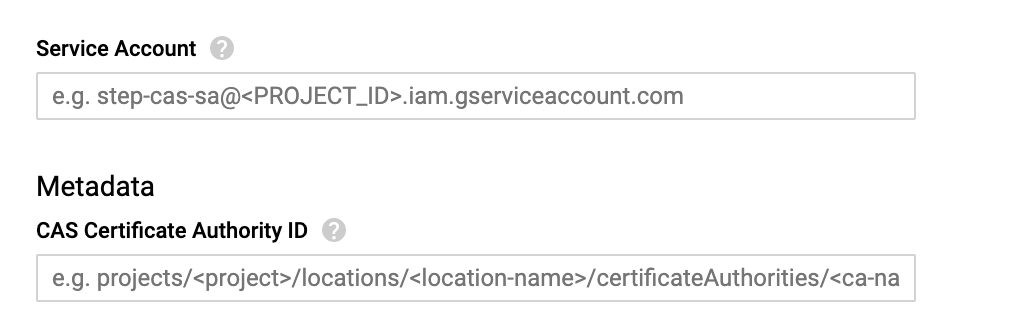

  2. Fill in required fields in the Launcher UI.

    • Service Account: email address of the service account generated in the previous step. This value should be equivalent to step-cas-sa@<PROJECT_ID>.iam.gserviceaccount.com.

    • CAS Certificate Authority ID: name of the CAS intermediate Certificate Authority created above.

      Get this value from the command line:

      gcloud privateca subordinates describe example-intermediate-ca --pool example-ca-pool --location us-west1 --format='get(name)'

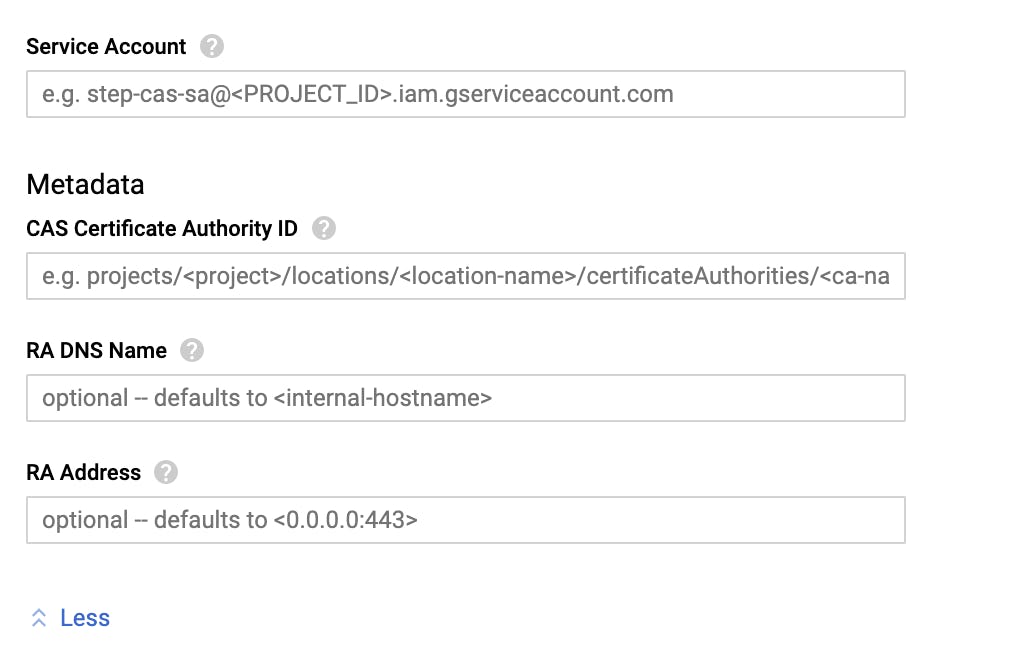

  3. Optional fields in the Launcher UI.

    Click the small more button to expand optional fields.

    • RA DNS Name: use this field to configure a permanent DNS name for your ACME RA. By default, this value will be the internal hostname of the instance. Hostnames are permanent within GCP so this value will not change across host restarts.

    • RA Address: use this field to configure the address and port at which the ACME RA will listen for connections. By default this value is 0.0.0.0:443. Note that, although the RA is configured to listen on all interfaces, external HTTP and HTTPS traffic is not enabled by default. See the next steps section for more info.

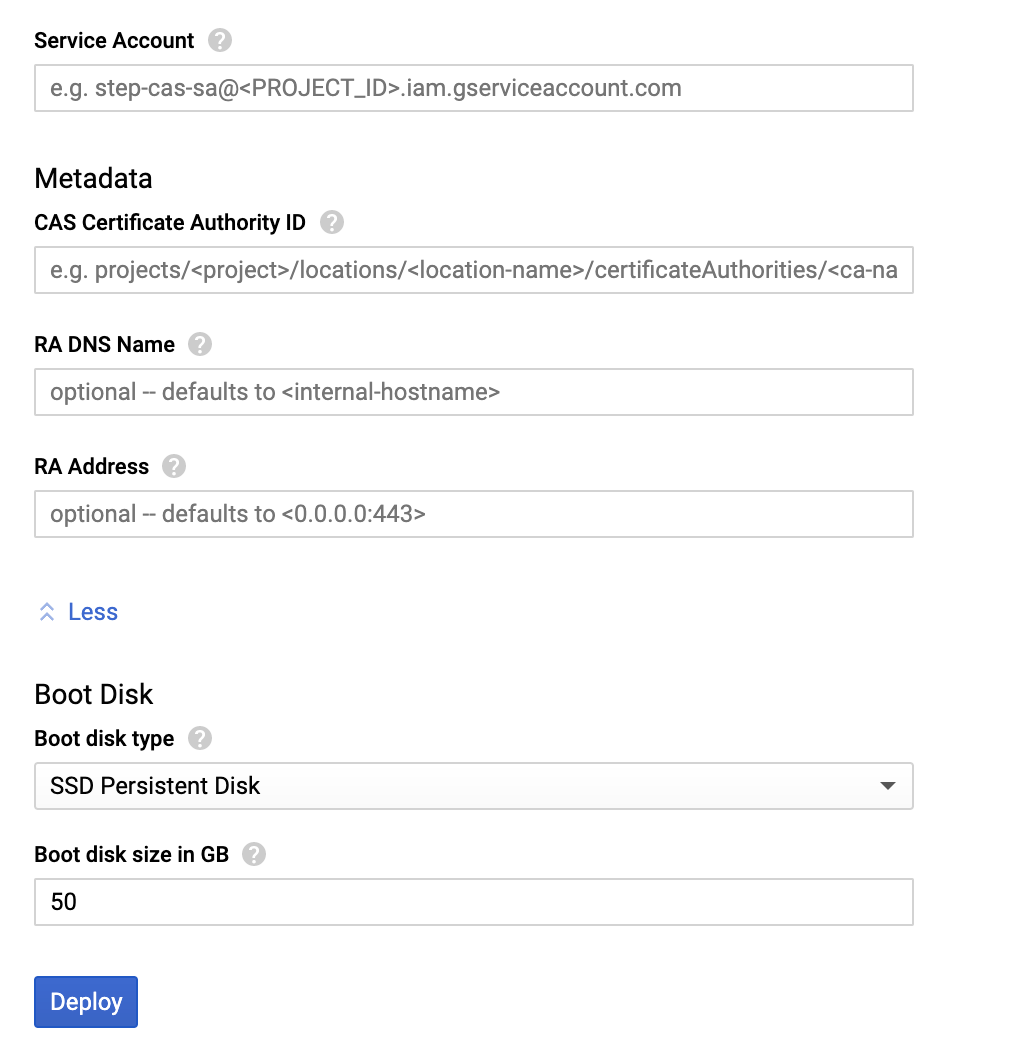

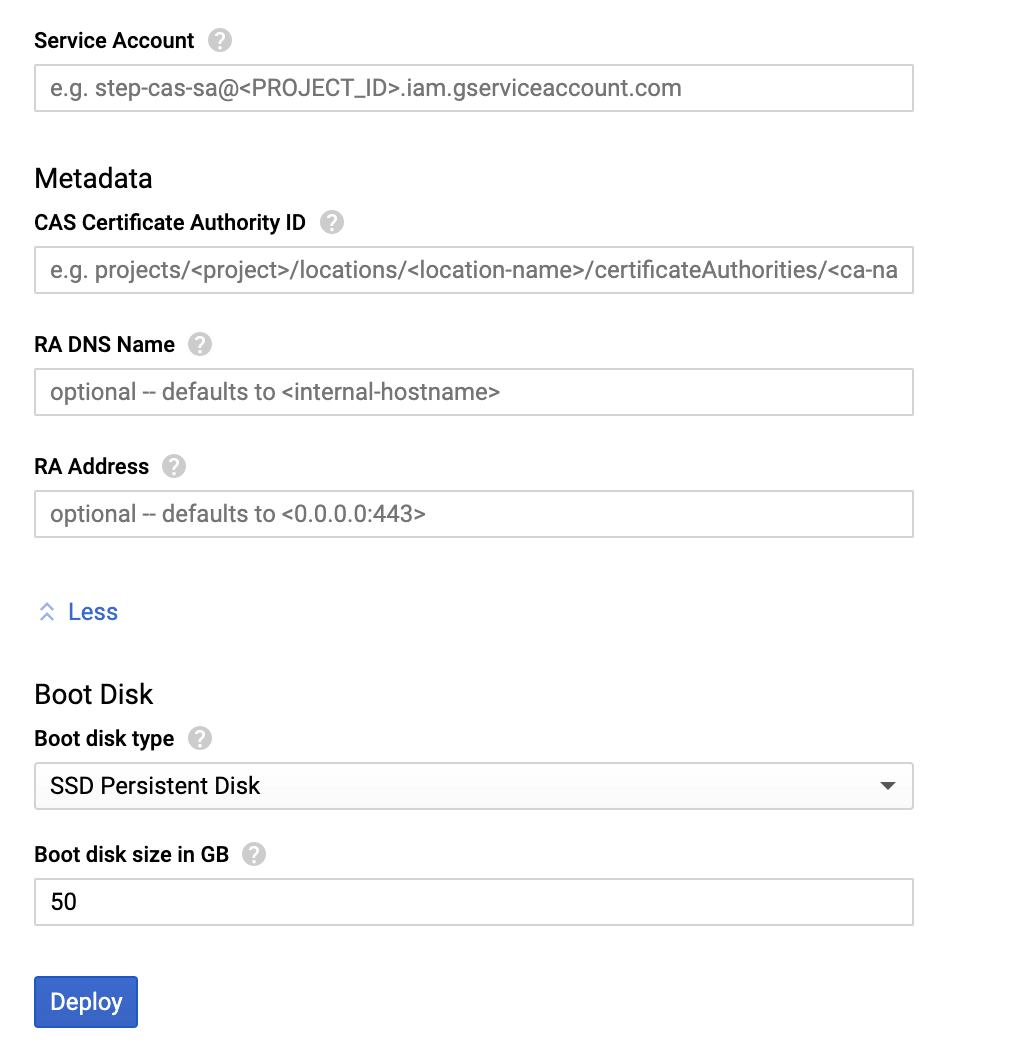

  4. Deploy!

8. Let's test out our deployment!

In this example we'll use certbot to test our new ACME RA for CAS, but any popular ACME client should work.

  1. Create a VM instance within the same project as your Smallstep ACME RA for CAS deployment.

    For the purposes of this example set the following attributes in the instance configuration:

    • Name: ra-tester
    • Boot disk: Ubuntu 20.04 LTS
    • Scopes: Allow full access to all Cloud APIs

    All other configuration can remain as is.

  2. SSH to the ra-tester instance and install certbot.

    $ sudo snap install core; sudo snap refresh core $ sudo snap install --classic certbot # Execute the following instruction on the command line on the machine to # ensure that the certbot command can be run. $ sudo ln -s /snap/bin/certbot /usr/bin/certbot
  3. Download the root certificate.

    gcloud privateca roots describe example-root-ca --pool example-ca-pool --location us-west1 --format='get(pemCaCertificates)' > /tmp/root_ca.crt
  4. Create a new certificate using the ACME RA for CAS.

    # Save the internal hostname for which we'll issue the certificate
    $ export HOST=$(curl http://metadata.google.internal/computeMetadata/v1/instance/hostname --silent --fail -H "Metadata-Flavor: Google")

    # Save the project-id
    $ export PROJECT_ID=$(curl http://metadata.google.internal/computeMetadata/v1/project/project-id --silent --fail -H "Metadata-Flavor: Google")

    # Get a certificate!
    $ sudo REQUESTS_CA_BUNDLE=/tmp/root_ca.crt certbot certonly -n --standalone -d $HOST --server https://acme-registration-authority-for-gcp-c-1-vm.c.$PROJECT_ID.internal/acme/acme/directory --agree-tos --email tester@smallstep.com


    Hooray!

Next Steps

A few considerations for making your ACME RA for CAS production ready.

Security Hardening

VM instance configuration:

  • Block project-wide SSH keys
  • We recommend leaving HTTP and HTTPS traffic from the internet diabled (this is the default). However, if your CA must be publicly available you should be aware that any user with a publicly addressable domain will be able to request a certificate from your CA. If you'd like to learn about options for locking down permissable ACME domains please contact Smallstep support.
