Certificate Authority Core Concepts

This document defines and describes certificate authority core concepts that are integral to the design and practical usage of step-ca.

Readers who are not yet familiar with public key infrastructure (PKI) and certificate management may want to check out...


Online and Offline X.509 Certificate Authority

Certificate Authorities (CAs) tend to be either "online" or "offline" mode.

When referring to Certificate Authorities (CAs), offline generally means air-gapped or network isolated. However, the term offline has a different meaning in the context of step-ca. When step-ca is online (using the step-ca server) it is responding to network requests. But step-ca can also operate "offline", without the step-ca server, by accessing the signing keys locally. We call this static, non-daemonized operation offline mode. Any further use of the term offline in these docs will refer to offline mode in the context of step-ca (local access only).

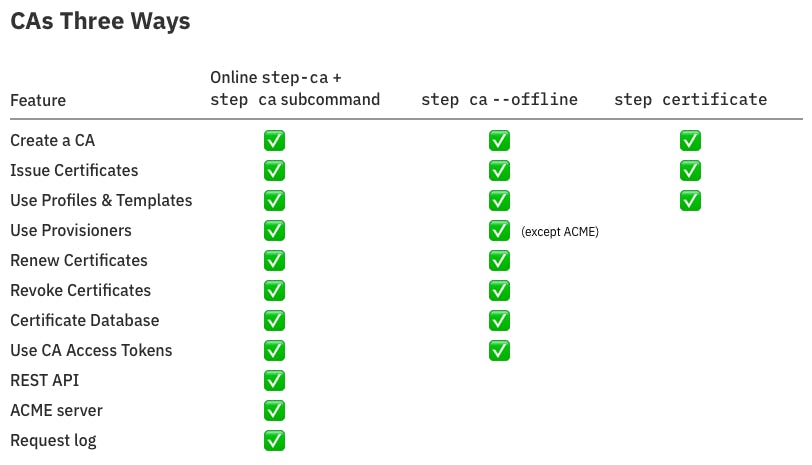

Our tools support three modes of generating and operating a Certificate Authority (CA):

  • An online database-backed CA, using the step-ca daemon and step ca subcommand (docs here).
  • A local (or airgapped) database-backed CA, using the step ca subcommand with --offline.
  • A minimalist, offline, stateless CA, using the step certificate subcommand (docs here).

Example: Offline Mode

It's not always practical or desirable to run an online CA. Smallstep provides the means to create certificates without step-ca running. step-cli offline mode leverages the CA's configuration, which must be available locally, to issue certificates.

$ step ca init --name "Local CA" --provisioner admin --dns localhost --address ":443" $ step ca certificate --offline foo.smallstep.com foo.crt foo.key

Registration Authority (RA) mode

Sometimes you may wish to run a Registration Authority (RA). An RA acts as a front-end to a CA, authenticating certificate requests from its clients before passing them along to an upstream Certificate Authority that will issue the certificates. This operational mode centralizes and simplifies CA key management, because a single backing CA can serve several RAs.

In RA mode, step-ca currently supports two backing CA types: Another step-ca instance ("StepCAS"), or Google CloudCAS.

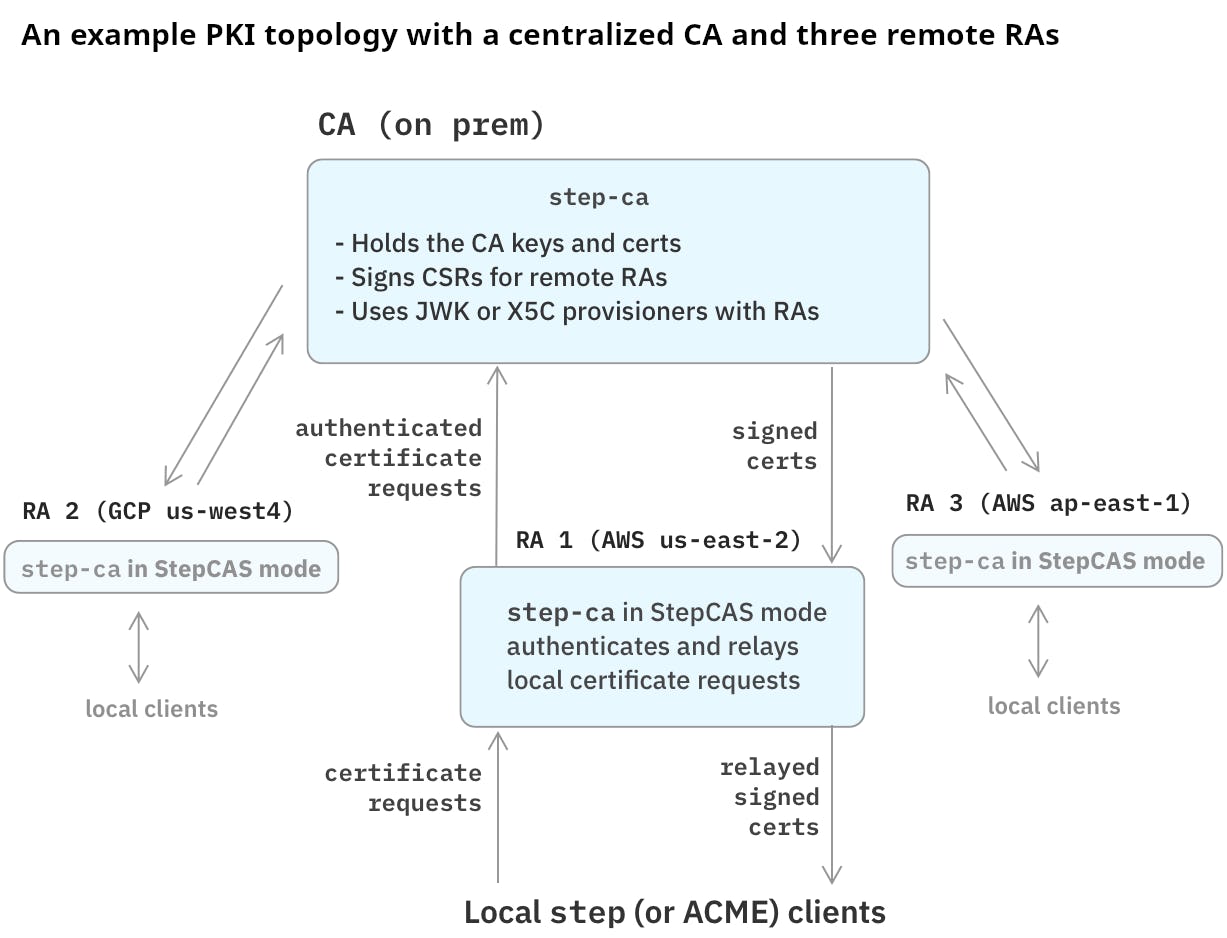

Example PKI topology with StepCAS RA Mode

See the Registration Authority (RA) Mode section of our Configuration Guide for more on RA mode.


The certificate signing API exposed by step-ca requires mutual authentication. The CA authenticates to the client using a certificate (which the client verifies using the root certificate created during CA initialization). But the client must also authenticate to the CA. Again, this presents a challenge: the client obviously can't use a certificate for authentication because it doesn't have one yet.

To verify the legitimacy of certificate signing requests, we need some entity that the CA trusts to measure and attest to the identity of our workloads. In the step certificates architecture this entity is called a provisioner, because it helps to provision certificates.

In general, once a provisioner authenticates a workload's identity it issues the workload a bearer token to submit to the CA, along with a certificate signing request (CSR), to obtain a certificate. The bearer token authenticates the workload and authorizes the certificate request.

Generic Architecture

The details of how a provisioner interacts with a workload (or device or person) and the CA vary by provisioner type. Smallstep supports a number of provisioner types including:

Active vs. passive revocation

On the public internet, sometimes HTTPS certificates need to be revoked before they expire. Over the years, there have been several methods for actively revoking HTTPS certificates. Any approach to solving this problem adds complexity to the PKI—usually in the form of additional network requests. For example, a web browser might need to fetch a Certificate Revocation List (CRL) from a URL embedded in an HTTPS certificate so it can make sure the certificate, which would otherwise be valid, has not been actively revoked by a trusted authority.

When designing a private PKI, you can make things a lot simpler and more decentralized. If you make certificate lifetimes short enough, you can passively revoke a certificate by letting it expire and making sure the Certificate Authority knows to reject any attempts to renew it.

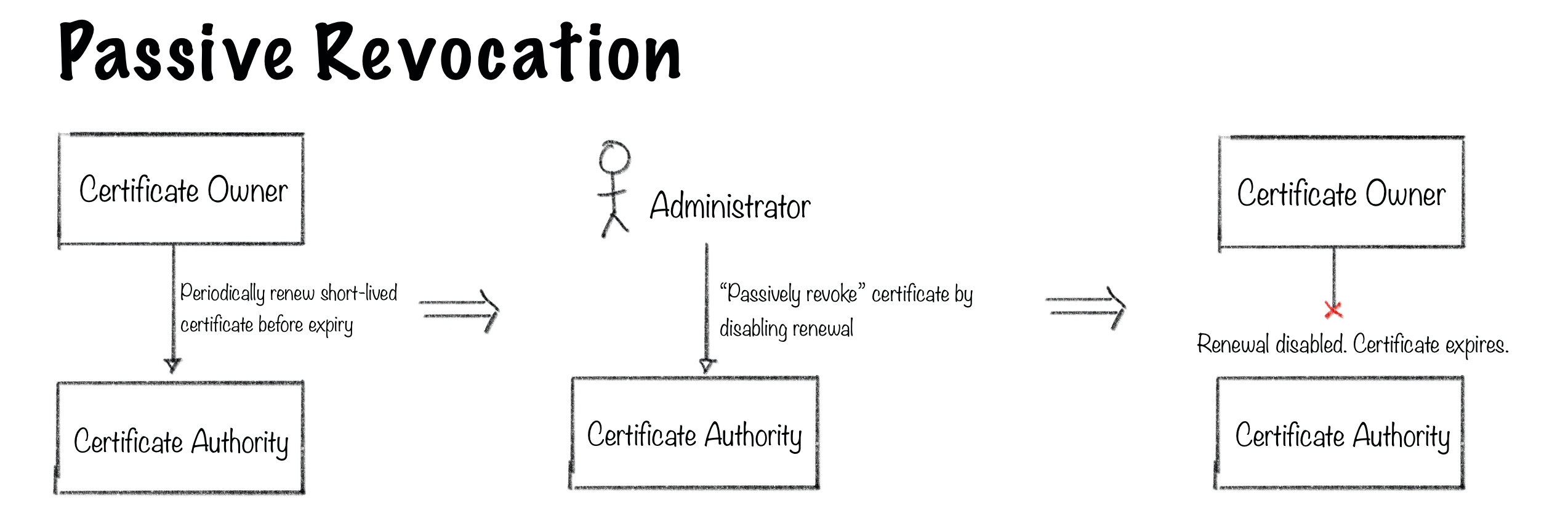

passive revocation diagram

Next Steps
